Devices Quick Charge

• Fully Supports Quick Charge 3.0 Class A and Class B specification. Output Voltage Can be Configured in Discreet Steps from


Class A: 3.6 V up to 12 V in 200mV steps
Class B: 3.6 V up to 20 V in 200mV steps


• Fully Supports Quick Charge 2.0 Class A and Class B specification

Class A: 5 V, 9 V, and 12 V Output Voltage
Class B: 5 V, 9 V, 12 V, and 20 V Output Voltage


• Supports MediaTek's Pump Express Plus

Class A: From 5V to 3.6V in 200mV decrements
Class B: Up to 7V, 9V & 12V


• Supports Apple's 5V/2.4A
• Compatible with USB BC1.2
• Built in MCU with UART and I2C/SPI for OLED display
• Automatically detects various fast charge protocols

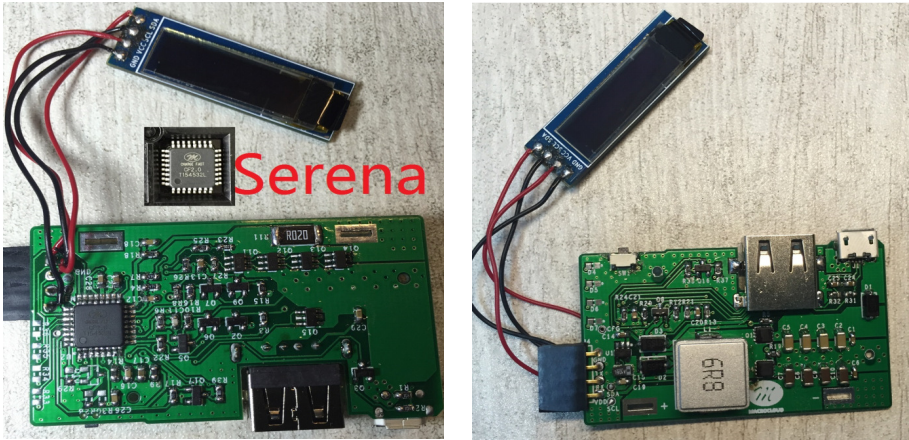

Material Object

Fast Charge Module (Serena) is based on JMT's single chip CF2.0 to support most of the fast charge standards, such as Qualcomm QC2.0/QC3.0, MTK PEP, Apple's 5V/2.4A, and others such as BC1.2 etc.







Download JMT CF2p0 Summary
